BOSA
Description
Description
Product details

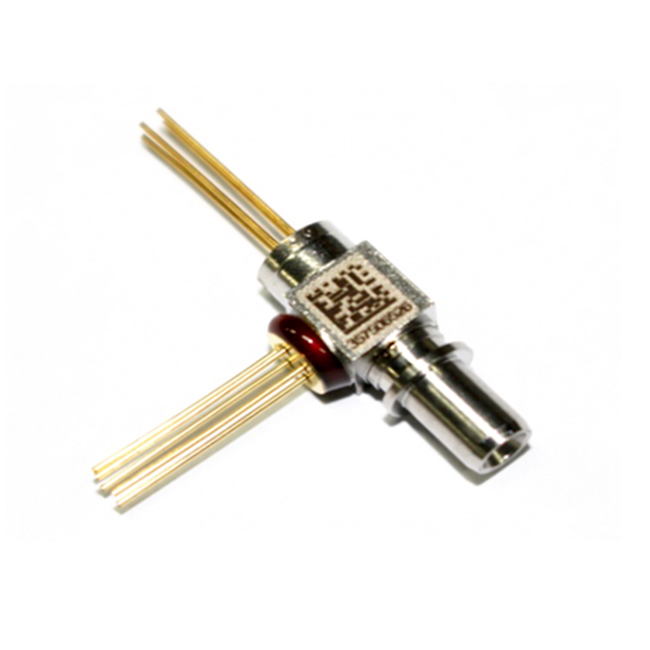

Model Number:SC BIDI BOSA
Type:Laser Diode
Package Type:Receptacle
Description
- Uplink 1310/1490nm/1550nm wavelength / working rate 155M, 1.25G, 2.5G, downlink 1490/1550nm / 1310nm working rate 155M, 1.25G, 2.5G point-to-point BOSA components.
- The DFB/FP laser is used at the origin, and the PIN-TIA diode is used at the receiving end.
- Chip information:
LD: 1310nm/1490nm/1550nm 155M,1.25G,2.5G DFB/FP 4PIN
PT: 155M,1.25G,2.5G PIN-TIA
- Product structure remarks: SC/PC ferrule sleeve assembly, machined / powder part structure, receiving end adhesive structure, without isolator.
Type:Laser Diode
Package Type:Receptacle
Description
- Uplink 1310/1490nm/1550nm wavelength / working rate 155M, 1.25G, 2.5G, downlink 1490/1550nm / 1310nm working rate 155M, 1.25G, 2.5G point-to-point BOSA components.
- The DFB/FP laser is used at the origin, and the PIN-TIA diode is used at the receiving end.
- Chip information:
LD: 1310nm/1490nm/1550nm 155M,1.25G,2.5G DFB/FP 4PIN
PT: 155M,1.25G,2.5G PIN-TIA
- Product structure remarks: SC/PC ferrule sleeve assembly, machined / powder part structure, receiving end adhesive structure, without isolator.
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V (RLD) |
| Max. Reverse Voltage | 15V |
| Max. Forward Current | 10mA |
| Max. Reverse Current | 150mA |
| Wavelength | 1310/1490nm/1550nm |
Features
- Laser welding solution
- Point-to-point application
- High optical isolation
- Working temperature: 0°C~70°C
- Receptacle SC BOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
- Remote communication
- Point to point communication
Supply Ability
6KK PCS/Month
Packaging & Delivery
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
