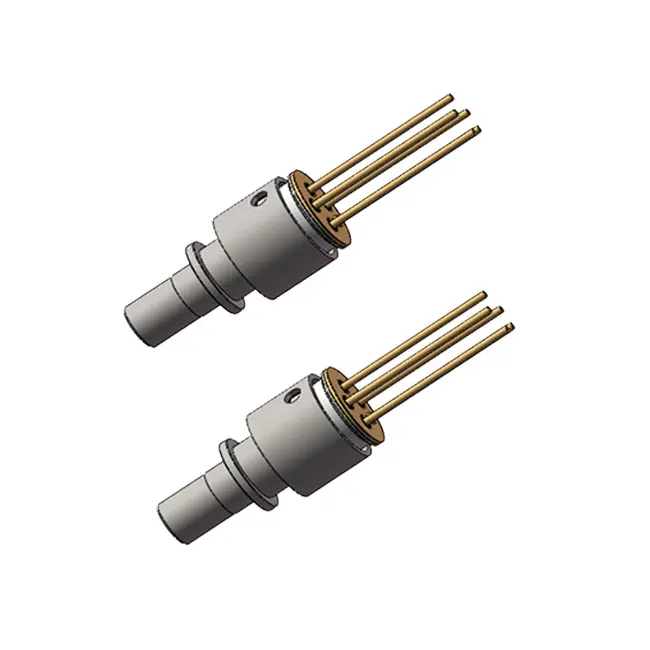

Product Description
◆ The working rate of this product is 155M, 1.25G, 2.5G optical receiving components
◆ Using PIN-TIA/APD-TIA diodes
◆ Chip information: PT: 155M, 1.25G, 2.5G PIN-TIA / APD-TIA
◆ Remarks on product structure: LC/PC ferrule assembly, machined/powdered parts, viscose structure
Features
◆ Laser welding solution
◆ High optical isolation
◆ Working temperature: 0℃～75℃
◆ Pluggable LC ROSA
Product Standards
◆ Comply with Telcordia GR-468 reliability test standard
◆ Comply with RoHS 6 standards
◆ Compliance with ROHS (Restriction of Hazardous Substances) standards
◆ Comply with GR-326 connector qualification standard
Applications
◆ Remote communication
1. Absolute Maximum Ratings
2. Receiver Electro-Optical Characteristics (TC=25°C, Vcc=3.3V)
3. Dimension Outline
◆ The working rate of this product is 155M, 1.25G, 2.5G optical receiving components
◆ Using PIN-TIA/APD-TIA diodes
◆ Chip information: PT: 155M, 1.25G, 2.5G PIN-TIA / APD-TIA
◆ Remarks on product structure: LC/PC ferrule assembly, machined/powdered parts, viscose structure
Features
◆ Laser welding solution
◆ High optical isolation
◆ Working temperature: 0℃～75℃
◆ Pluggable LC ROSA
Product Standards
◆ Comply with Telcordia GR-468 reliability test standard
◆ Comply with RoHS 6 standards
◆ Compliance with ROHS (Restriction of Hazardous Substances) standards
◆ Comply with GR-326 connector qualification standard
Applications
◆ Remote communication
1. Absolute Maximum Ratings
| Item | Symbol | Unit | Min | Max | Note |
| Storage Temperature | TSTG | ℃ | -40 | 85 | |
| Operating Temperature (ambient) | TOPR | ℃ | 0 | 75 | |
| PD supply voltage | Vpd | V | -0.4 | 5 | |
| Lead Soldering Temperature(Max10 sec) | TS | ℃ | --- | 260 | |
| Optical Input Peak Power | Vrpd | dbm | 6 | ||
| TIA Supply Votlage | Vcc | V | -0.4 | 5 |
2. Receiver Electro-Optical Characteristics (TC=25°C, Vcc=3.3V)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Supply Current | ICC | According to TO selection, the range will be different | --- | --- | --- | mA |
| Operation Wavelength | λ | 1270 | 1310 | 1610 | nm | |
| Saturation Power | PSAT | NRZ, λ=1310nm ，2.488 Gbps ，PRBS223-1，BER=10-10，ER=5dB | -7 | --- | --- | dBm |
| Sensitivity | Sen | NRZ, λ=1310nm ，2.488 Gbps ，PRBS223-1，BER=10-10，ER=5dB | --- | -31 | dBm |
3. Dimension Outline
