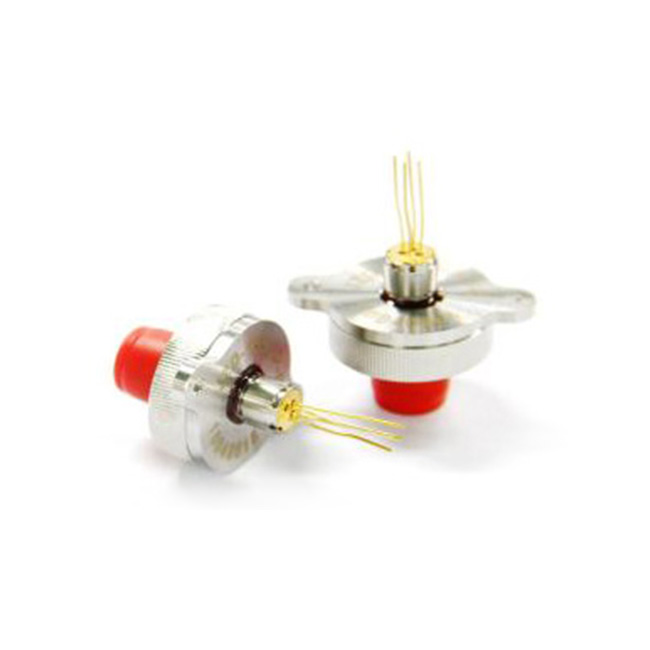

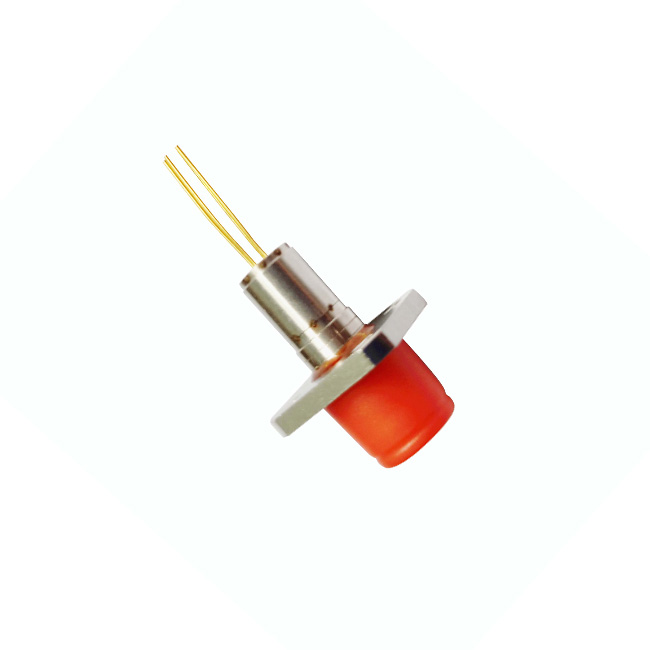

APD & Photodiode
Description
Description
Product detail
Place of Origin:Sichuan, China (Mainland)
Features
- PON(Passive Optical Network) photodiode,Low dark current
- High responsivity
- High stability and reliability
- High channel separation
- Compliant with RoHS standard
Application
- FTTH(Fiber to home),Communications systems.
- CATV systems
- WDM systems.
Absolute Maximum ratings
Recommended Operating Conditions
Optical and Electrical Characteristics(Tc=25℃)

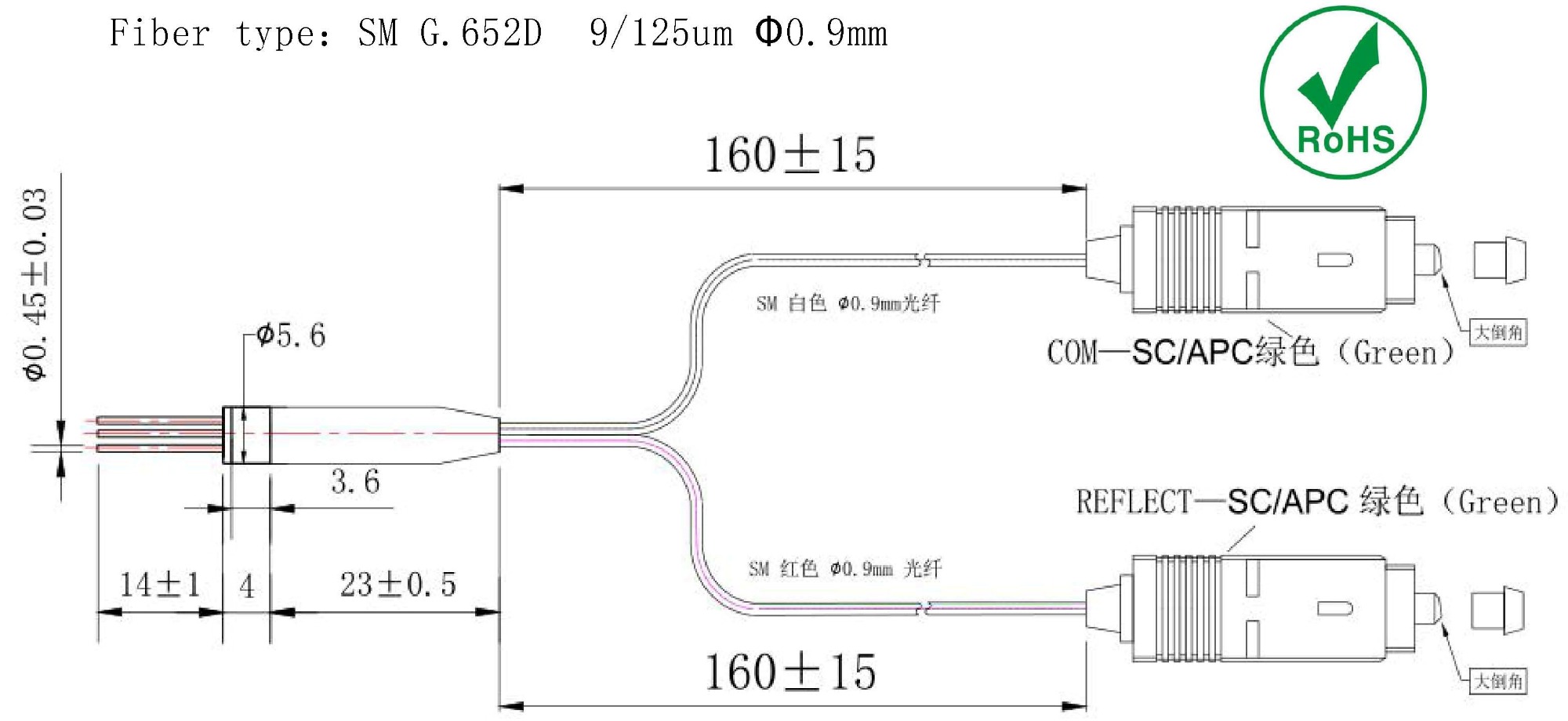

Pin Description and Package Dimensions：（mm）
Supply Ability
100000 PCS/Month more or less
Packing Specification
- The specifications of the Antistatic boxes:320*220*15mm
- PON(Passive Optical Network) photodiode,Low dark current
- High responsivity
- High stability and reliability
- High channel separation
- Compliant with RoHS standard
Application
- FTTH(Fiber to home),Communications systems.
- CATV systems
- WDM systems.
Absolute Maximum ratings
| Parameter | Symbol | Min | Max | Unit |
| Saturation power | Ps | — | 2 | mW |
| Forward current | If | — | 10 | mA |
| Reverse voltage | Vr | — | 20 | V |
| Operating temperature | Top | －25 | +85 | ℃ |
| Storage temperature | Tstg | －40 | +120 | ℃ |
| Solder Temperature | TS | — | 260 | ℃ |
| Soldering time | — | — | 10 | s |
Recommended Operating Conditions
| Parameter | Symbol | Min | Type | Max | Unit |
| Case Operating Temperature Range | Tc | －20 | +25 | +85 | ℃ |
| Operating voltage | Vcc | — | -12 | — | V |
Optical and Electrical Characteristics(Tc=25℃)
| Parameter | Symbol | Testcondition | Min. | Type | Max. | Unit | ||
| Pass Channel Wavelength | λ0 | 1540 | 1550 | 1560 | nm | |||
| Reflect Channel Wavelength | λ1 | 1260 | 1310 | 1360 | nm | |||
| λ2 | 1480 | 1490 | 1500 | nm | ||||
| Responsivity | R | Vr=5Vλ=1550nm | 0.88 | 0.95 | — | A/W | ||
| Returnloss | RL | λ=1550nm | 35 | 40 | — | dB | ||
| PassChannel | λ=1310nmλ=1490nm | 30 | 40 | — | dB | |||
| Isolation | ReflectChannel | Iso | λ=1550nm | 20 | 22 | — | dB | |
| PDL | ReflectChannel | λ=1310nmλ=1490nm | — | — | 0.05 | dB | ||
| PassChannel | λ=1550nm | — | — | 0.05 | dB | |||
| Insertloss（COM-Reflect） | IL | λ=1310/1490nm | — | — | 0.7 | dB | ||
| ESD | — | 300 | — | — | V | |||

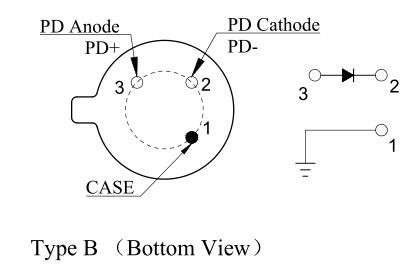

PinAssignment
100000 PCS/Month more or less

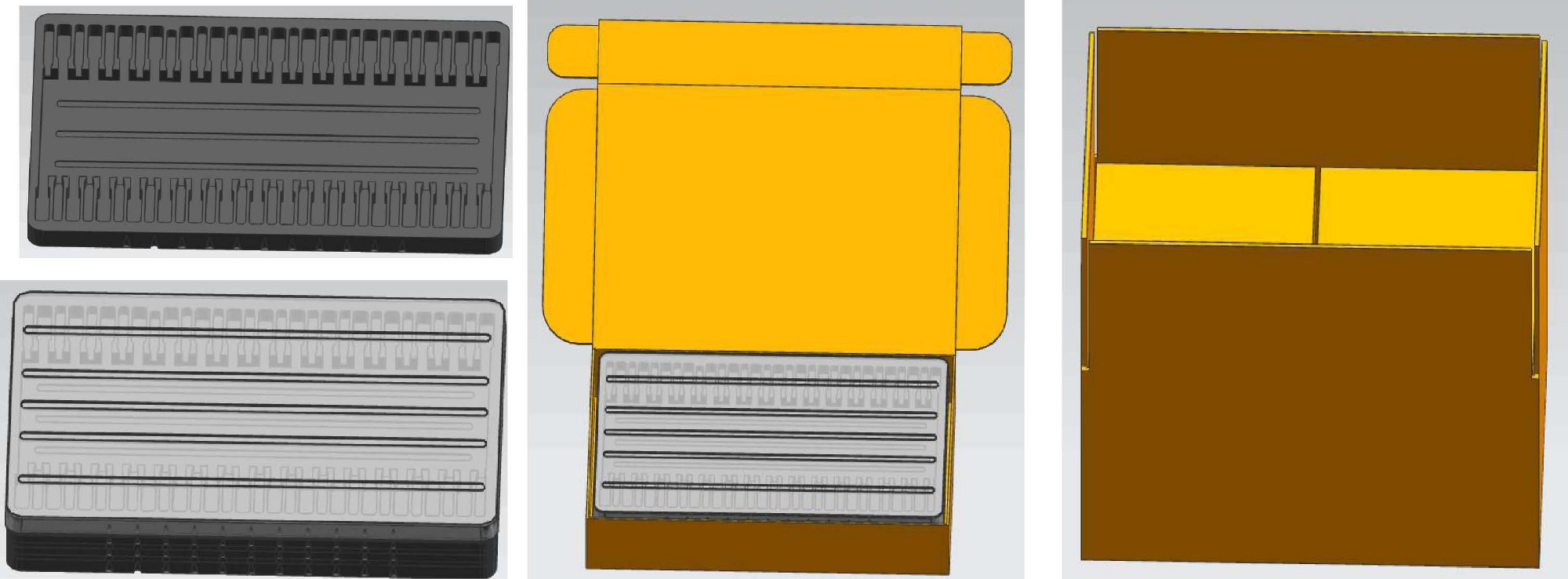

Packing Specification
- The specifications of the Antistatic boxes:320*220*15mm
- The specifications of thebox：335mm*240mm*60mm
- The specifications of the Carton：485mm*345mm*260mm
- Numberofpackages：14pcs/Antistaticboxes，70pcs（5base1cap）/boxes，560pcs（8box）/Cartons
